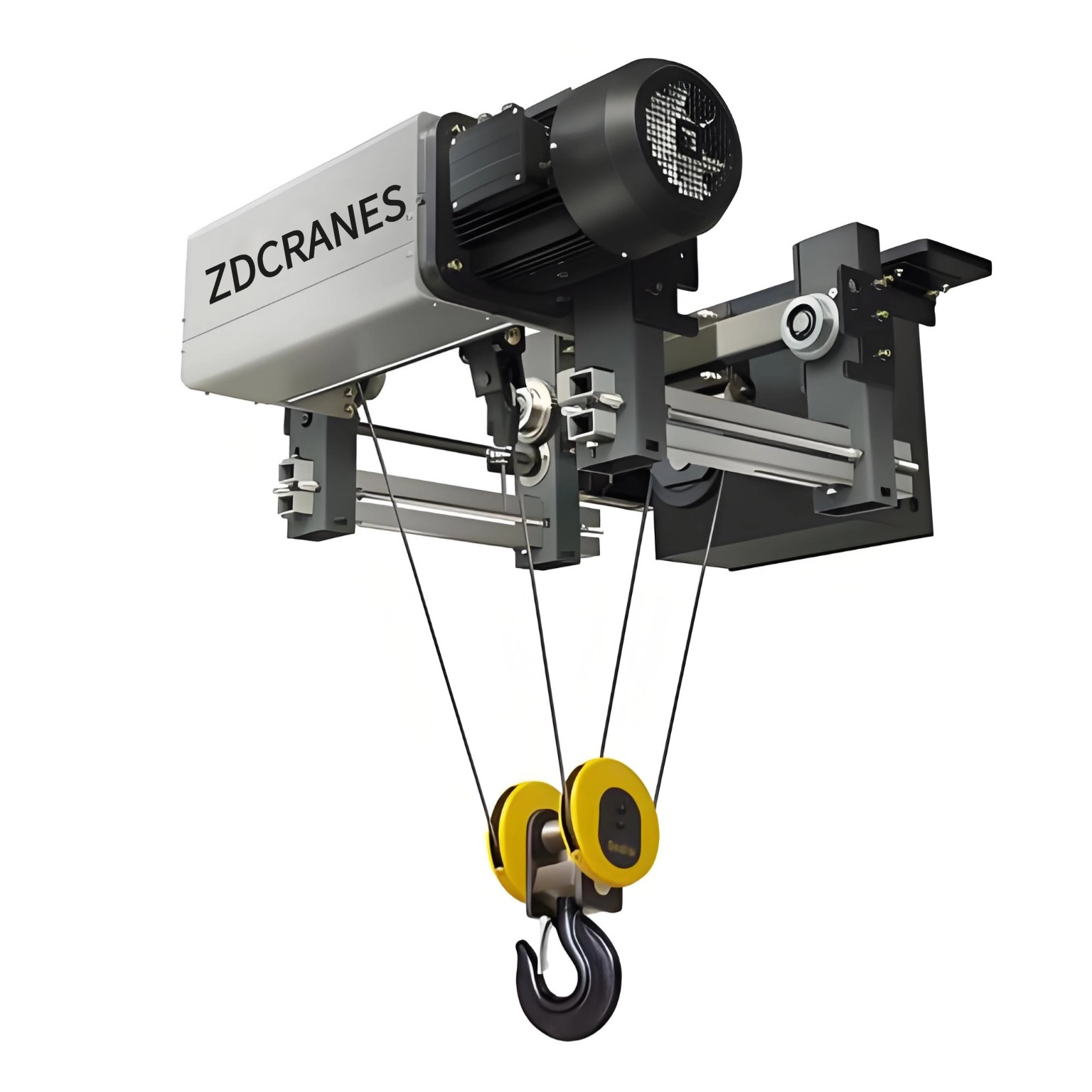

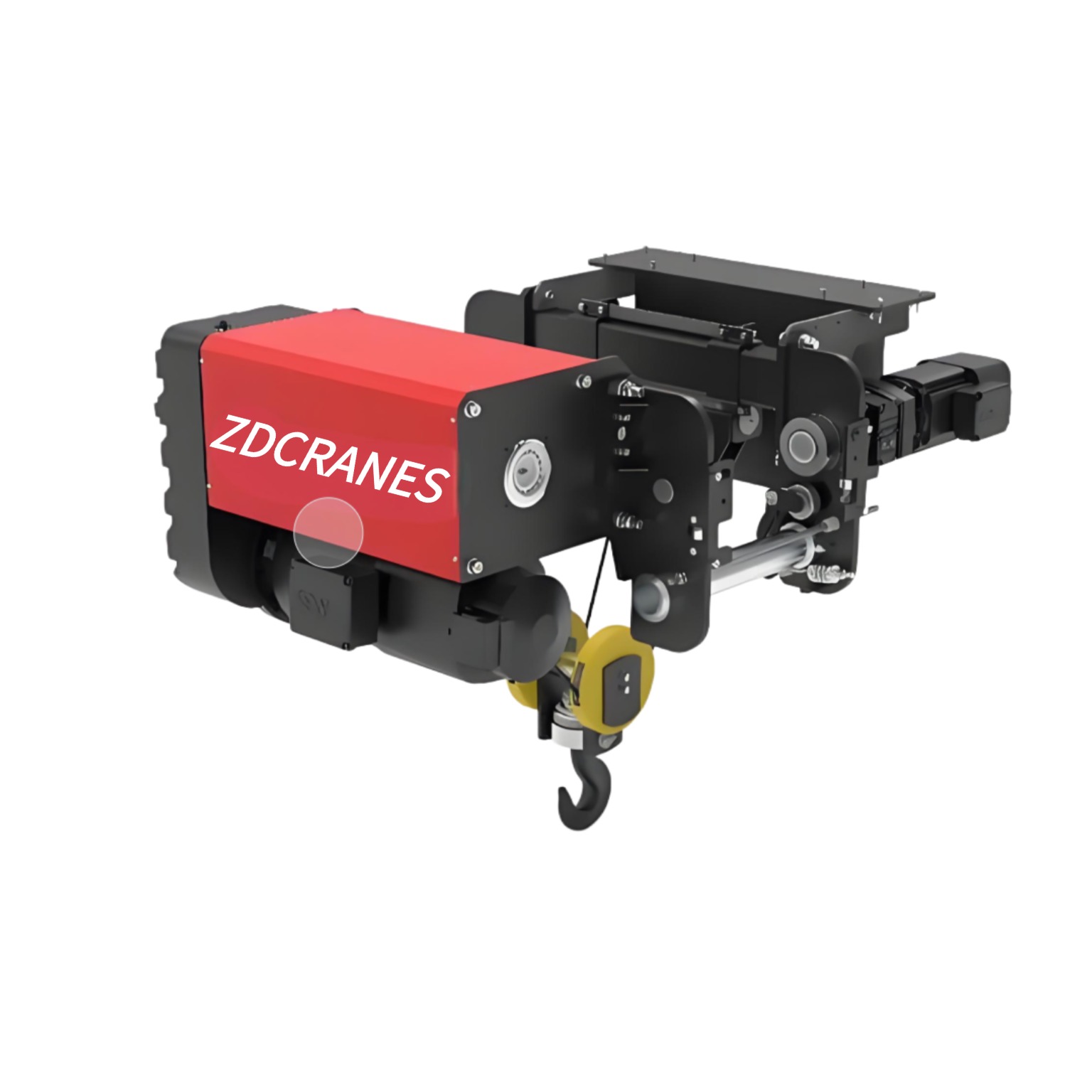

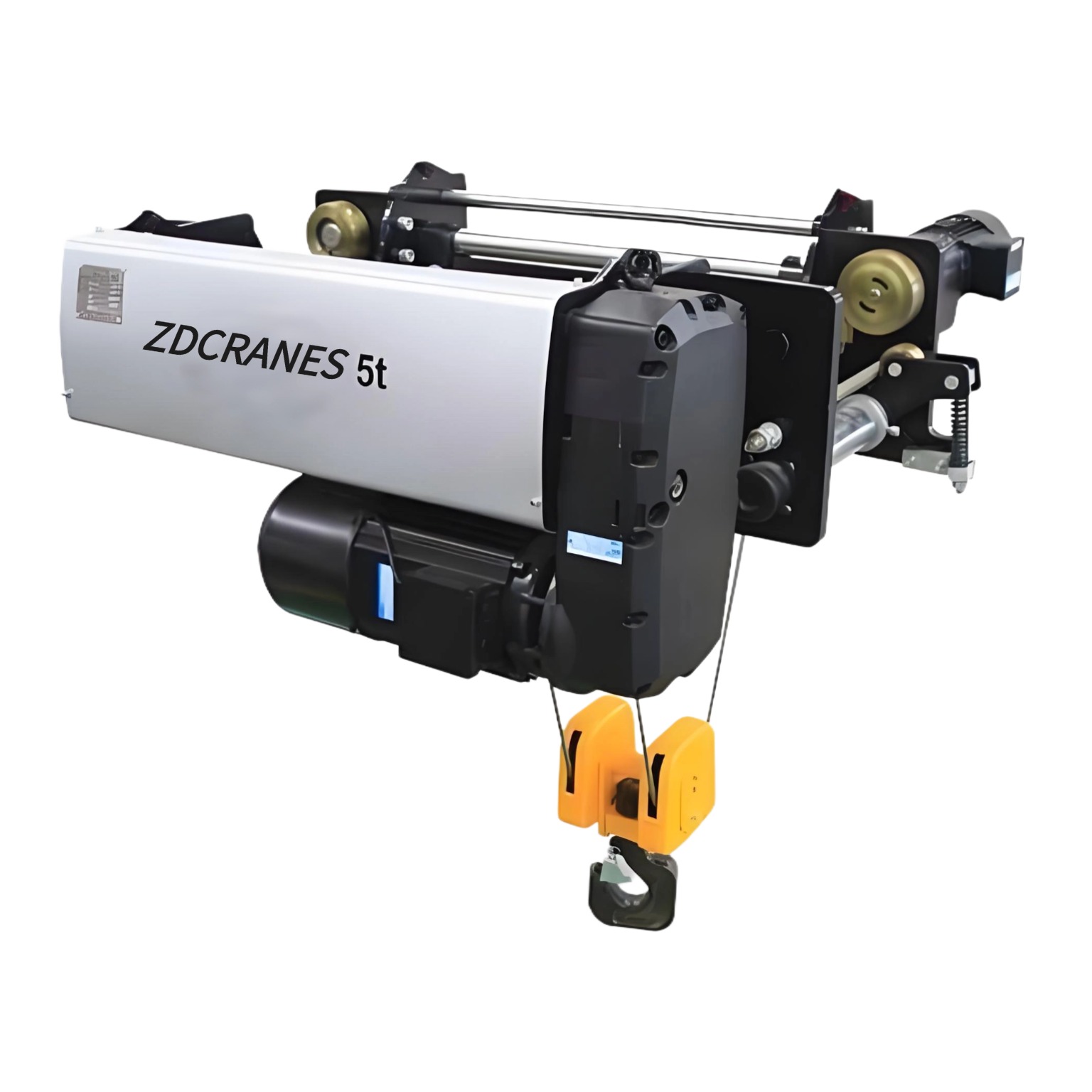

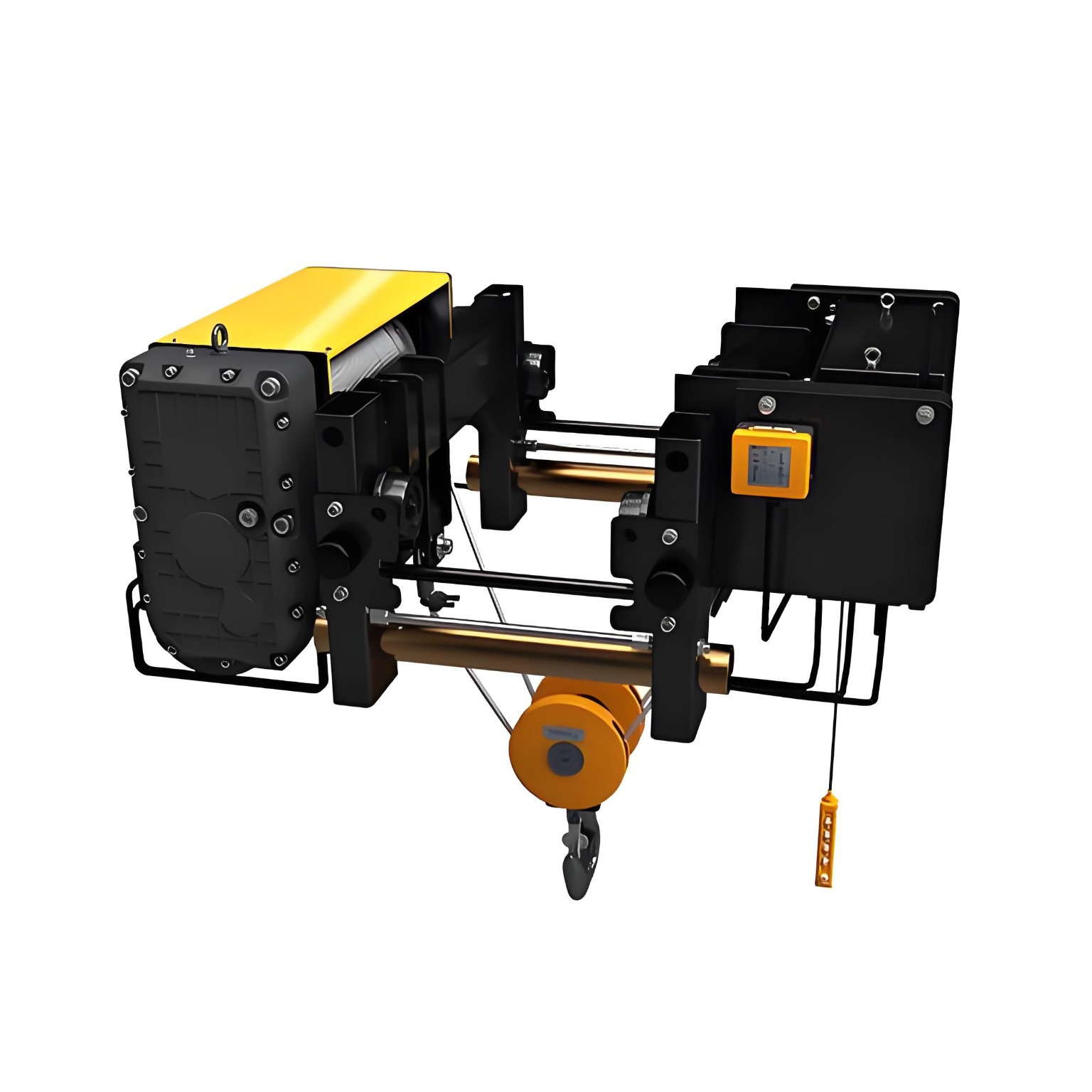

European electric hoist

Our European-style electric hoist is a lightweight, modular, and maintenance-free electric hoist developed by our company based on the introduction and digestion of international technologies, utilizing imported components, new materials, and advanced processes. It utilizes a hoisting motor and reducer imported from Germany. The integrated, compact design of the hoisting motor, reducer, drum, and hoisting limit switch saves space. The modular design enhances reliability while effectively reducing maintenance time and costs. It offers a wide range of lifting speeds and a variety of pulley ratios.

Product Features

Hoisting mechanism：Designed in strict compliance with FEM standards.
Technical Features:
Aluminum alloy reducer housing
Smooth operation and low noise
Lifetime lubrication (within the safe operating period)
Dual-disc electromagnetic disc brake
Drum:The drum is machined from high-quality seamless steel tube using CNC machines. The precision-machined grooves on the drum, combined with a rope guide, effectively prevent rope loosening and tangling.
Wire Rope:The wire rope utilizes high-strength imported steel wire rope with a tensile strength of 2160 N/m², ensuring excellent safety and long service life.
Rope Guide:The standard rope guide is made from wear-resistant, self-lubricating engineering plastic, significantly reducing wear on the wire rope, the primary load-bearing safety component, thereby enhancing the safety of the hoisting mechanism. Heavy-duty rope guides made of ductile iron are also available to meet specific application requirements.
Hoist Motor:The hoist motor uses a double-winding squirrel-cage pole-changing motor, achieving a 1:6 speed ratio. The motor housing is made of drawn aluminum alloy, providing excellent heat dissipation. A fan is installed at the end of the hoist motor for enhanced cooling. All hoist motors have thermistors (or thermal switches) embedded in the windings to prevent possible motor overheating.
The motors have Class F insulation and IP54 protection.Variable-frequency hoist motors can be equipped with an encoder, typically mounted directly on the fan shaft end of the motor.
Technical Features:
Low starting current, high torque
Soft start, excellent acceleration
Long design life
Technical parameters meet FEM and HMI standards
High speed, low noise
Brake:The hoist motor is equipped with a dual-disc electromagnetic disc brake. The brake is integrated into the end of the motor and automatically engages when the motor is powered off, preventing the load from slipping. The brake clearance requires no manual adjustment after initial setting (the clearance is automatically adjusted by the brake spring). When the brake pad thickness falls below the set value, an attached monitoring switch automatically triggers an alarm, prompting the user to replace the brake pad. The dual-disc electromagnetic disc brake is safe and reliable, with a braking torque of no less than 1.8 times the rated torque of the motor, a braking cycle of up to 1 million, and no maintenance required within its safe operating life. Technical Features:
Fast action, high reliability
Maintenance-free, self-adjusting
Dust-proof design, long service life
Reducer:
The reducer housing is constructed of lightweight, corrosion-resistant aluminum alloy. A semi-grease-based lubricant within the fully sealed housing ensures adequate lubrication of all gears, eliminating the need for lubricant changes within the designed safe operating life.
Each gear is surface-hardened and precision-ground to ensure smooth operation.
Technical Features:
Compact size, light weight
Smooth operation, low noise
Corrosion-resistant, maintenance-free
